Product Description

This machine set automatic strip stripping, automatic cutting, automatic collection in one of the hot type magnetic strip mounting machine;

Roll the magnetic strip through hot press rolling，Attach it to the magnetic strip.

stripping magnetic strip ,auto stripping，Automatic waste collection;

Film length can be set freely;

Mounted magnetic strip film automatically collected into a roll；

Magnetic strip film, customers can freely choose film collection or roll collection.

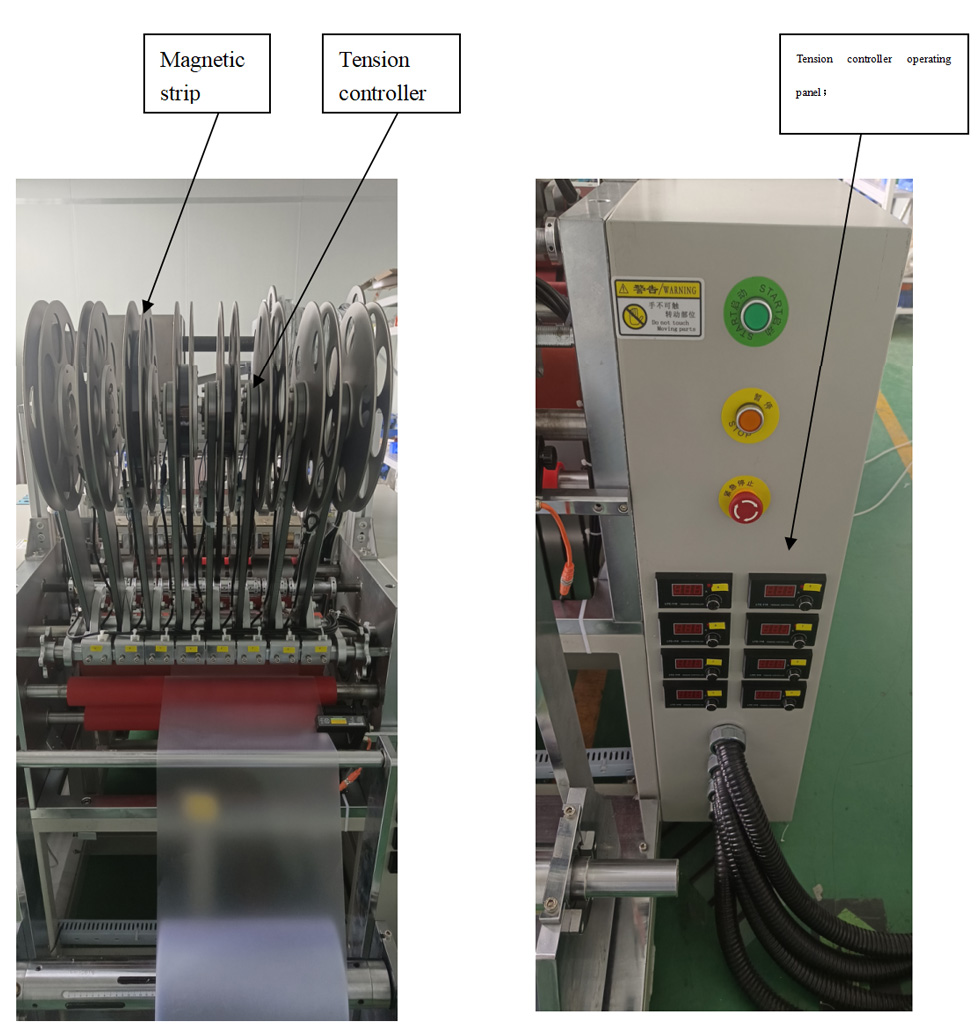

The magnetic strip roll infeed  are controlled by CNC tension controller, and the magnetic strip tension is controlled digitally；

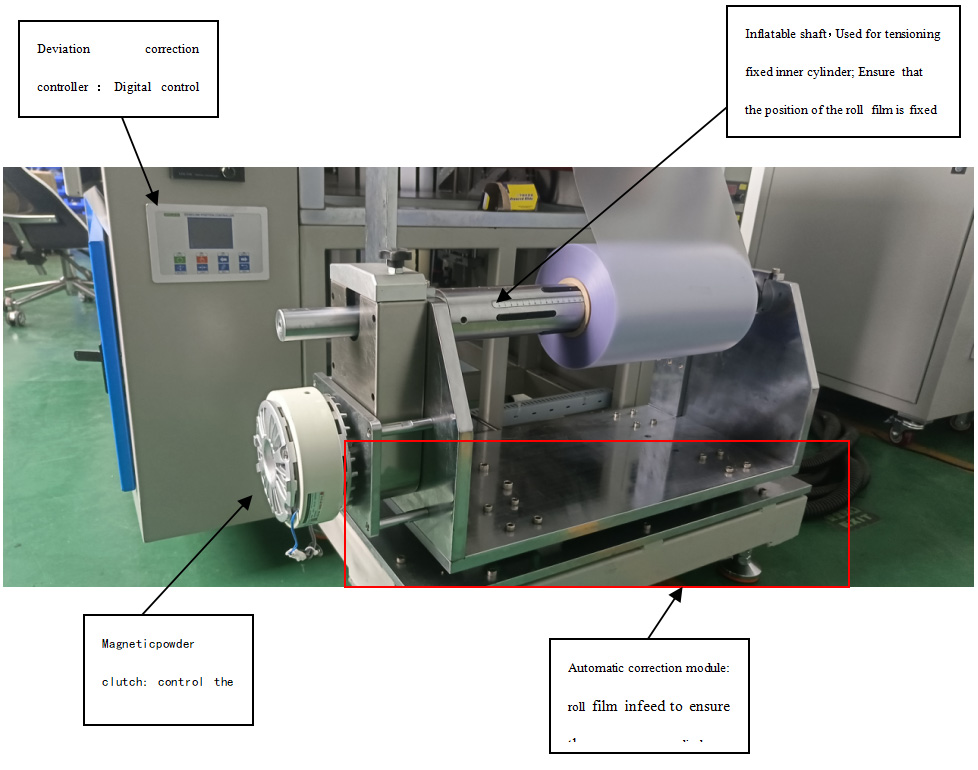

Roll film infeed and outfeed CNC position corrector is adopted to ensure the film position accuracy；

Function：


1.Roll film infeed、roll film output. automatic deviation correction control guarantee output material；

2、Magnetic stripe infeed：The digital interface of tension control system is adopted to realize the digital control of magnetic strip film tension.；

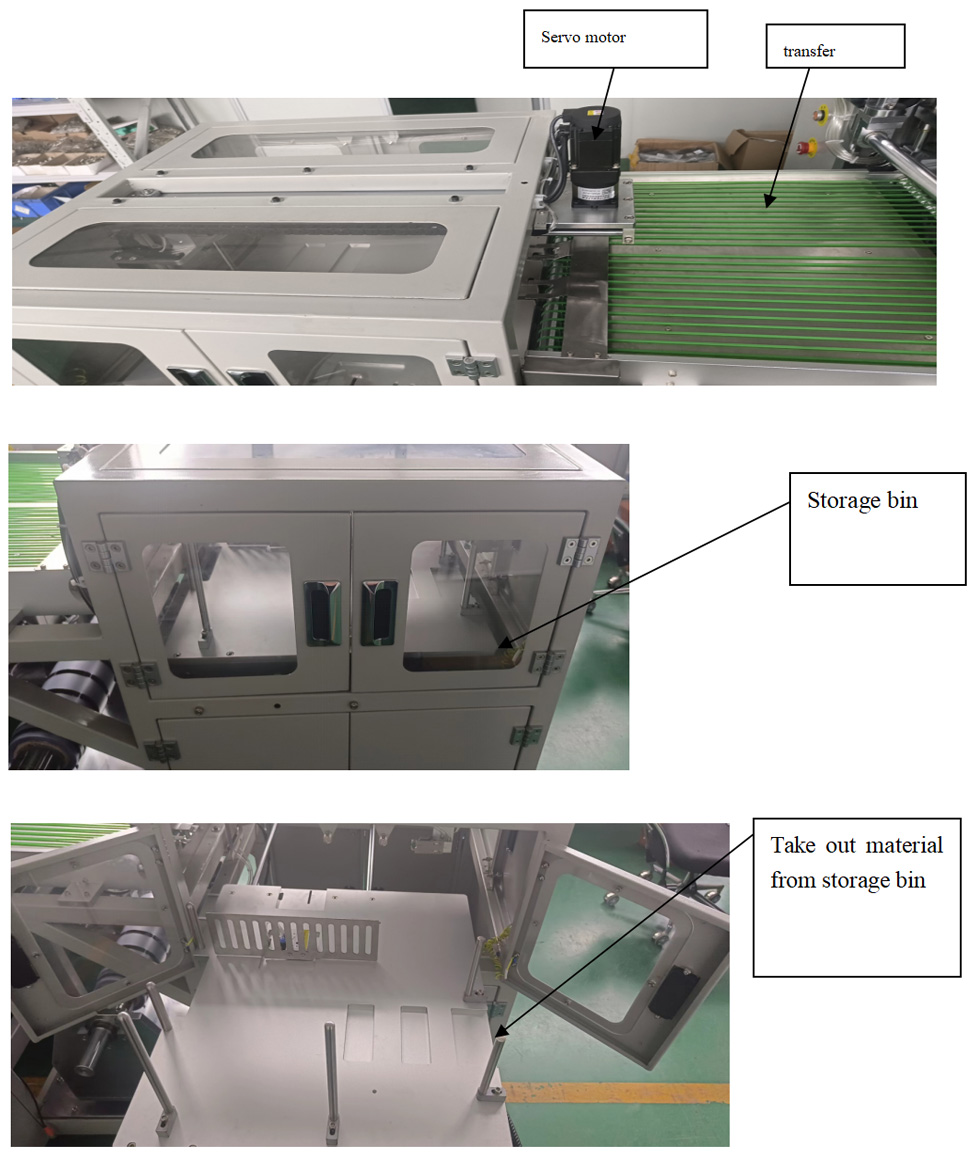

3、Automatic collection of pieces material：Servo transfer position can be set，Compatible with automatic outfeed of different layouts；The system can automatically set the quantity of materials received，When the quantity is reached, the system automatically prompts for manual retrieval；(The figure below is for reference only）
